Magic mountain waterproofing
Magic mountain waterproofing

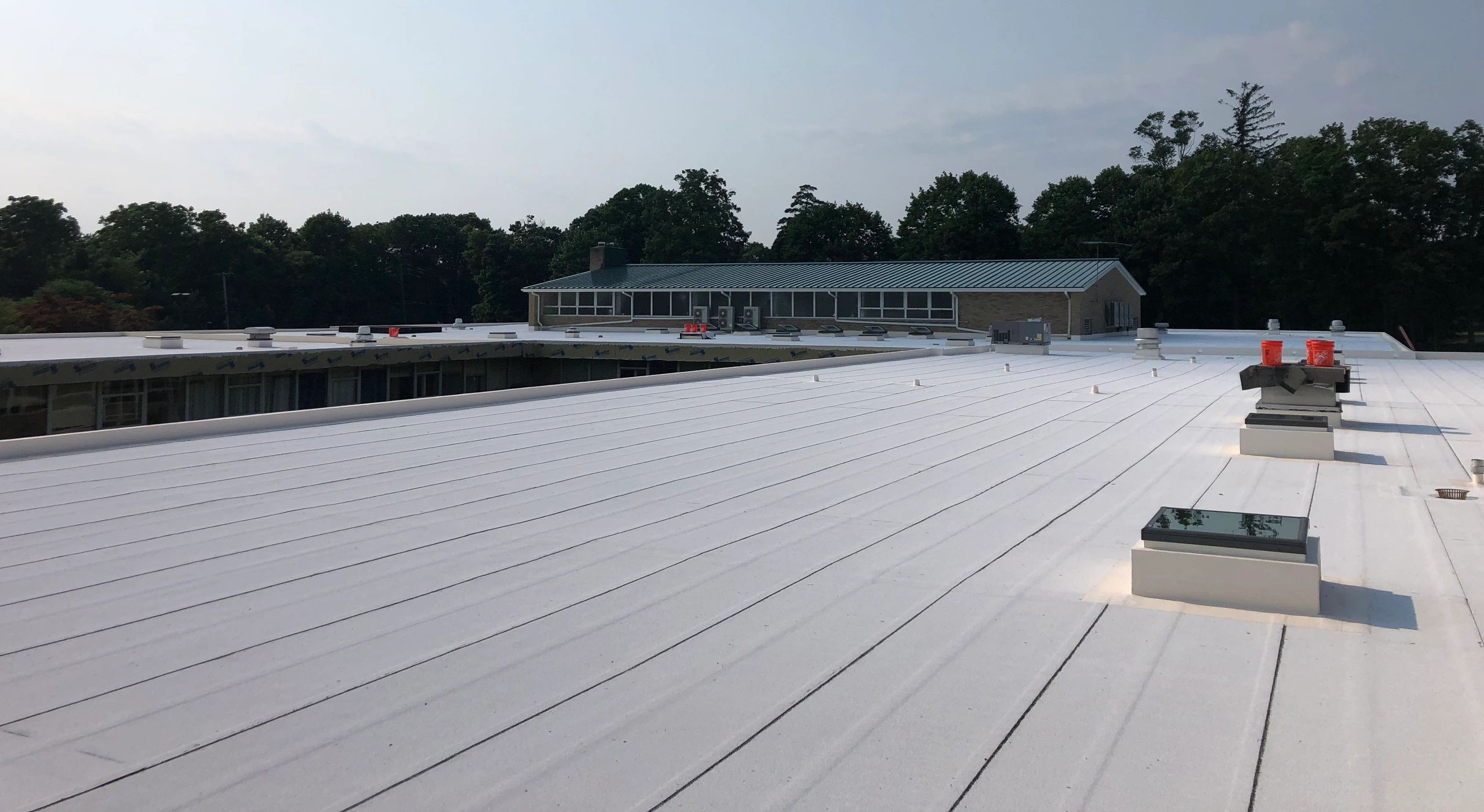

FLAT ROOF REPLACEment

Before

Before

Before

EPDM system original to the building that has failed after numerous patchwork and thousands of dollars spent. The owner decided it's time to replace the roof, 2 ply SBS system was recommended.



After

Before

Before

Mechanically attached cement board, 2 ply system installed on the flat surface with the liquid membrane  applied on the wall flashing and all penetrations (pipes, vents, etc.)15 year warranty was issued to the owner.

Brownstone roof replacement

Before

Before

Before

Decades old properly done roof that withstood the test of time is slowly deteriorating .Cracks and uv rays damage is seen,roof layover was recommended.





After

Before

Before

Granules in the sbs system help to protect the membrane from excessive sun exposure.Sbs system was directly applied over the existing membrane using glue adhesive,liquid membrane was then applied on the wall flashing and all penetrations.15 year warranty was issued to the owner.

terrace makeover

Before

Before

Before

Leaking roof with rubber pavers. Installation of rubber pavers directly on the roof without pedestals slows down drainage causing the membrane seams to crack.Full roof replacement was recommended.

After

Before

Before

Soprema liquid system was recommended ,20 year ndl manufacture warranty was issued,Decorative porcelain pavers on adjustable  pedestals were installed for better water drainage.

Before

Before

Before

After

Before

Before

WATERPROOFING

Before

During work

During work

Previous contractor used the wrong material for the job, blueskin material is not to be used for areas where water can pool.The seams failed causing water to enter the floor below.

During work

During work

During work

Removal of old waterproofing membrane ,scarifier grinding of concrete ,prep work for application of seamless liquid applied system.

After

During work

After

Soprema liquid system was successfully applied,24 hour water test completed.

Steel pool waterproofing

Before

After

During work

Steel welding connections failed to cause a major leak to the floors below.

During work

After

During work

Soprema alsan product was recommended. The surface was cleaned and primed using special metal primer, All steel connections were reinforced with 4-inch liquid strip.

After

After

After

Soprema alsan with fleece fabric was applied over steel area.Texture was applied for better tile application,24 hour water test was completed.

Concrete pool waterproofing

Before

After

During work

The concrete pool liner failed causing major leak in garage area.Tiles and waterproofing liner were removed to inspect condition of concrete slab.

During work

After

During work

Beginning of application of Soprema liquid membrane, preparation of concrete slab, application of primer.

After

After

After

Soprema alsan product was applied with fleece fabric over the primed surface. A 24-hour water test was completed. The texture was applied for better tile application.

WATERPROOFING

Before

Before

Before

Landmark property basement access hatch.Old failing design causes multiply leaks to property basement,

After

Before

Before

Access hatch was properly scraped and cleaned from old paint and rust, Liquid membrane was then applied with a coat of paint to retain the original landmark look.

Galvanized skylight

Before

Before

Before

Old plastic dome skylight kept leaking after numerous repairs.Client decided to replace it with a traditional galvanized skylight.

After

Before

Before

Galvanized hip vent skylight was recommended along with a new 8 inch curb.Curb was properly waterproof using liquid applied membrane.Skylight was then installed to the new curb.

Velux skylight

Before

Before

Before

Client decided he wants more natural sunlight in his apartment,old access hatch opening were used for new skylight curb.

After

Before

Before

Old access hatch removed, new framing and curb install, liquid membrane applied to seal of the elements. Velux skylight installed over new curb.

Garage floor waterproofing

                                   Before

                              During work

                                       After

Roof penetrations are the most important waterproofing details, improper waterproofing can compromise roof reliability, before hiring a roofing company make sure your roofer is knowledgeable and use high-end products, to solve the most difficult waterproofing problems.


Roof details waterproofing

Outdoor kitchen penetrations

Outdoor kitchen penetrations

Outdoor kitchen penetrations

Commercial laundry vents

Outdoor kitchen penetrations

Outdoor kitchen penetrations

Hvac penetrations

Outdoor kitchen penetrations

Hvac penetrations

Hvac curb stands

Drains and gutters

Hvac penetrations

Drains and gutters

Drains and gutters

Drains and gutters

Railings

Drains and gutters

Drains and gutters
